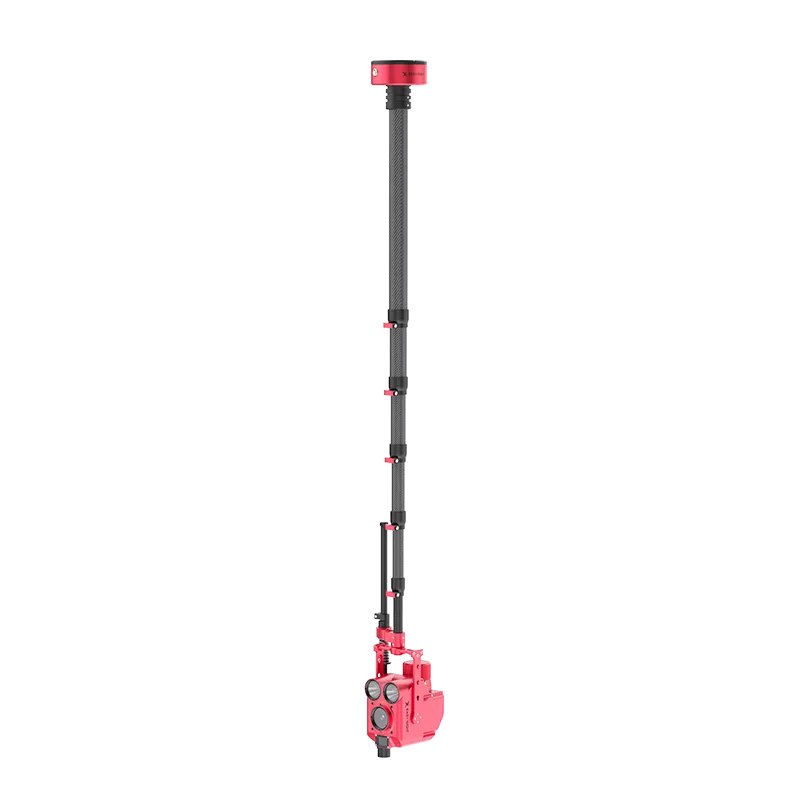

X1-P1 Pipeline Quick View Camera

Product Overview

X1-P1 Main Parts

•

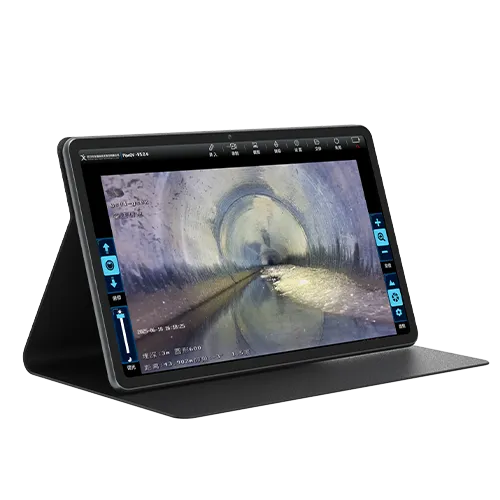

  Main Control

  1. Processing Capability: 4GB or higher RAM;

  2. Storage Capacity: 128GB or higher internal storage;

  3. Display: 10.1-inch capacitive screen with 1920 * 1200 resolution;

  4. Control: Wireless control;

  5. Operation: Touch control for focus, zoom, primary/auxiliary light brightness, camera rotation, etc.;

  6. Image Capture: Quick capture and save defect images;

  7. Playback: Browse and replay video files or images;

  8. Text Input: Input text via soft keyboard, overlaid and saved in video footage;

  9. Battery Life: Continuous operation ≥8 hours, with battery level indicator;

  10. Interface: Type-C port;

  11. Dimensions: 240mm160mm8mm;

  12. Weight: Approx. 400g;

•

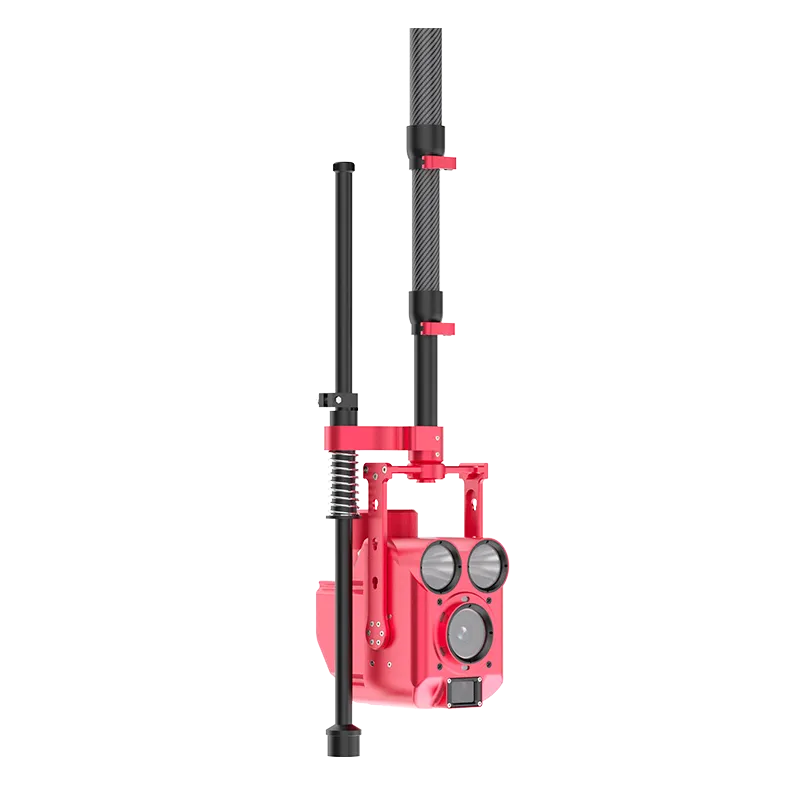

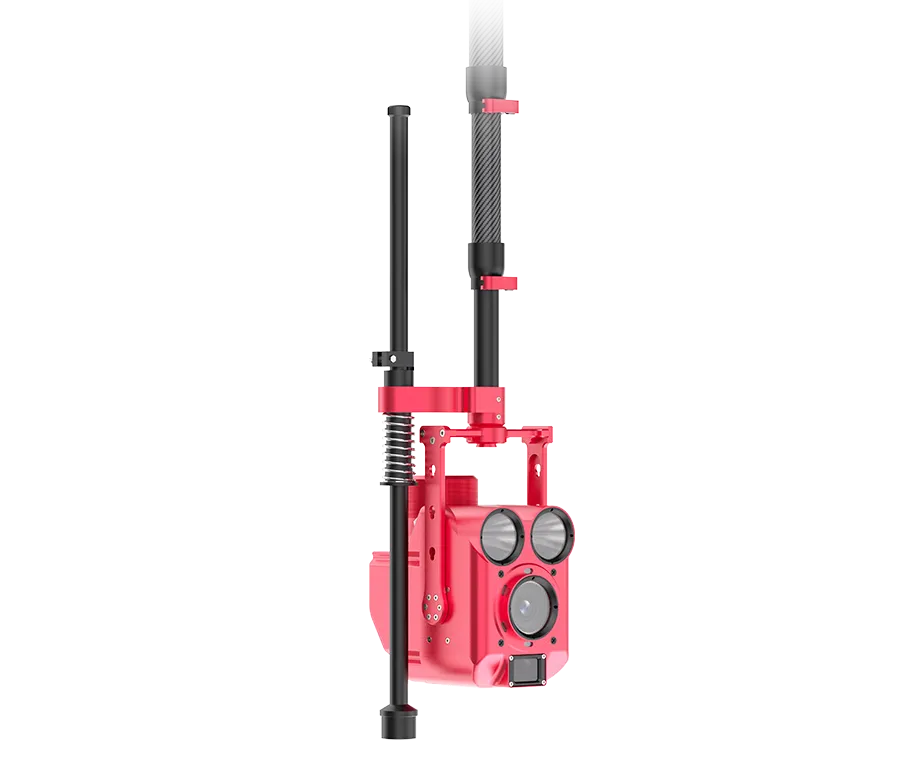

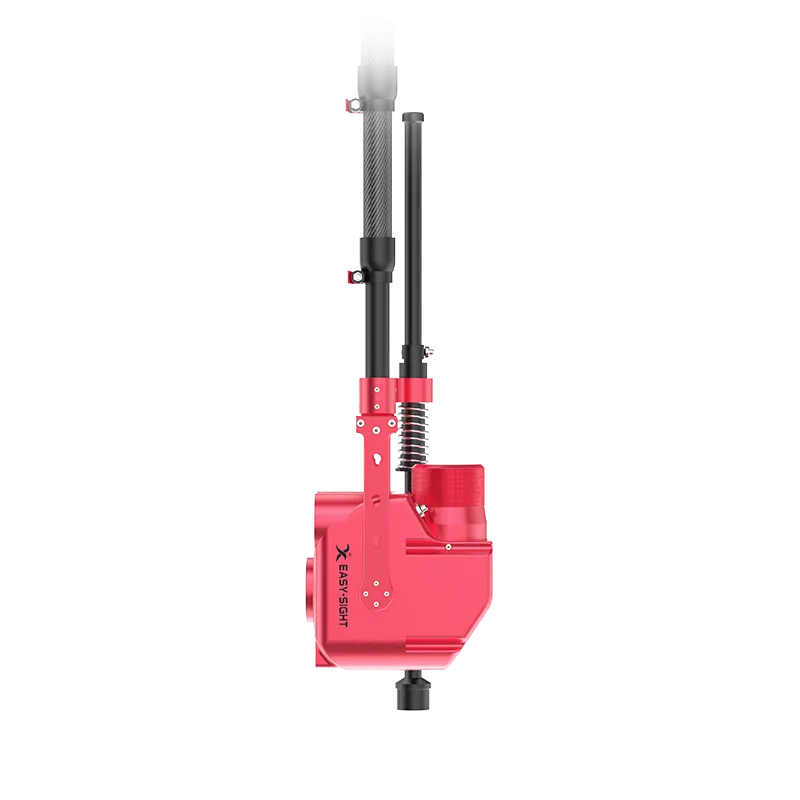

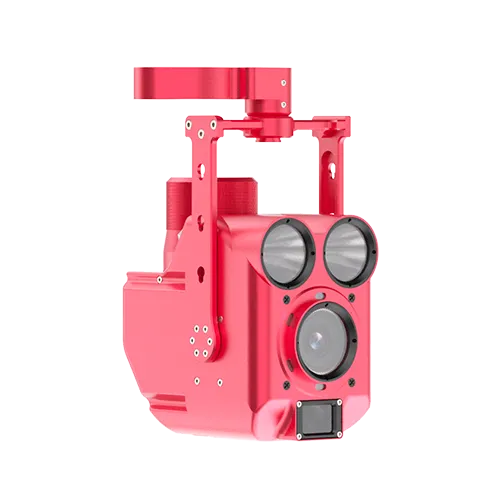

  Camera Probe

  1. Applicable Environment: Urban stormwater, sewage, combined pipelines, water supply, industrial wastewater pipelines, etc.;

  2. Applicable Pipe Diameter: 100mm~2000mm;

  3. Operating Temperature: -10℃~50℃;

  4. Light Source Follow: Light source moves with camera probe, upward rotation 60°, downward rotation 30°;

  5. Pressure Indicator: Green light for normal pressure (1.1bar≤P<1.7bar); red light for high/low pressure (P≥1.7bar or P<1.1bar);

  6. Lighting: Primary 10W LED with spotlight cup, auxiliary 6x3W LEDs with floodlight design, independent and stepless adjustment;

  7. Image Sensor: Color 1/2.8", progressive scan CMOS;

  8. Image Resolution: PAL standard, 1920 * 1080, 2 megapixels;

  9. Viewing Angle: Horizontal 58.4° (wide angle), 2.3° (telephoto);

  10. Zoom & Focus: 30x optical zoom, 12x digital zoom, auto or manual focus;

  11. Sensitivity (Minimum Illumination): 0.01LX;

  12. Adaptability: One-touch defogging, one-touch probe centering;

  13. Waterproof Rating: IP68;

  14. Weight: 2.45kg;

•

  Laser Distance Measurement Module

  1. Measurement Accuracy: ±0.001m;

  2. Measurement Range: 0.2m~80m;

  3. Real-time high-speed measurement, results displayed in video footage;

•

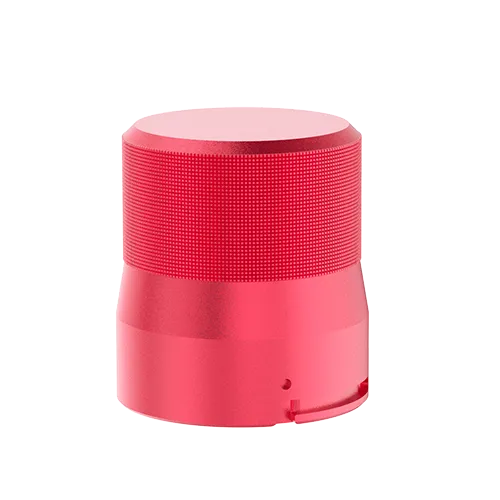

  Probe Battery

  1. Battery Life: Approximately 3 hours per battery when used with probe, with software battery level indicator;

  2. Dimensions: Ø69 * 76mm;

  3. Weight: 448g;

  4. Standard Charger: Output 25.2V/2A;

•

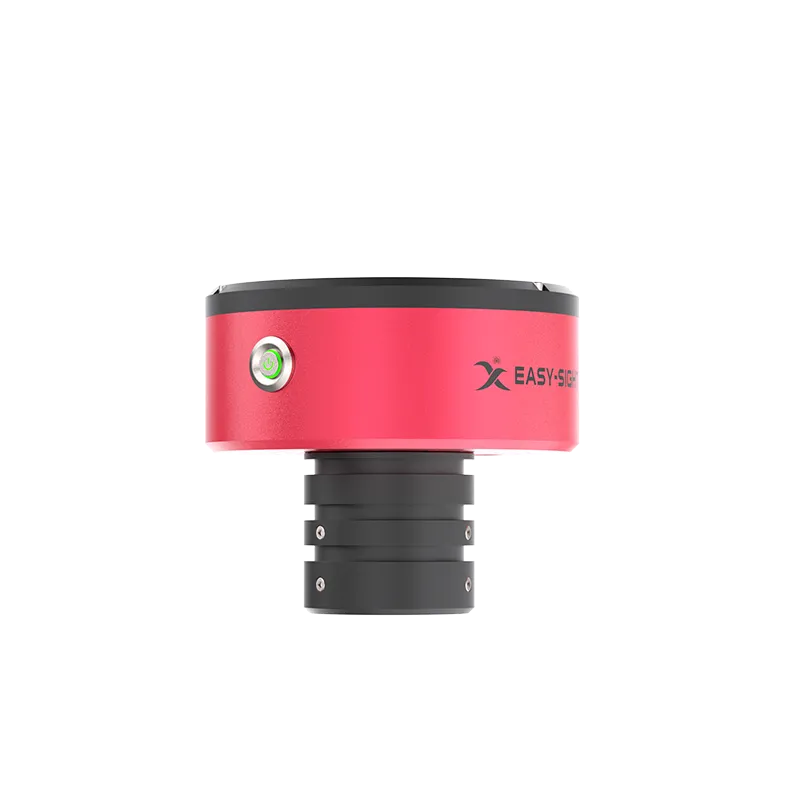

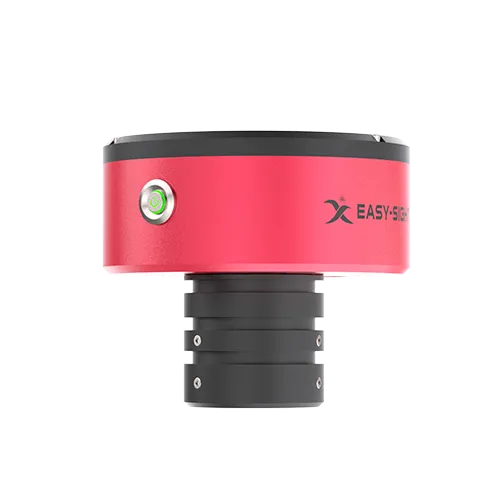

  Signal Box

  1. Battery Life: Approximately 13 hours, with battery level indicator;

  2. Dimensions: Ø117 * 58mm;

  3. Weight: 663g;

  4. Standard Charger: Output 25.2V/2A;

•

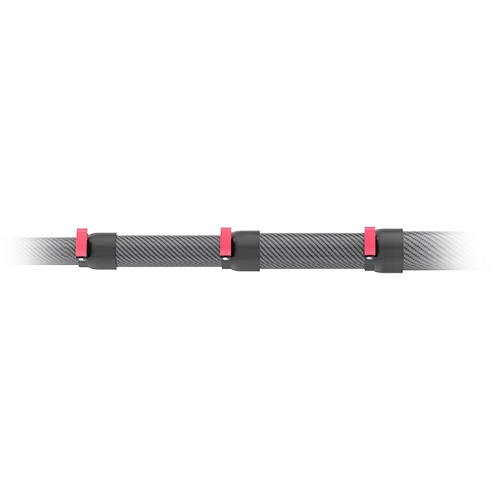

  Standard Control Rod

  1. Carbon fiber material (10x compressive strength of ordinary steel);

  2. Nested telescopic design, reinforced joints, fully extended length 4.8m;

  3. Single extension rod: 0.8m retracted, 1.5m extended. Quick-connect design, extendable up to 12m;

•

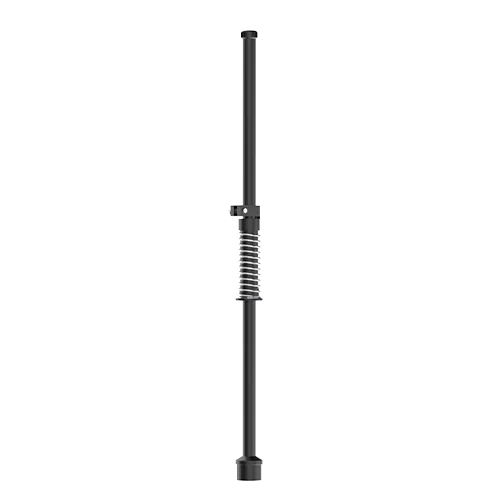

  Support Rod

  1. Lightweight material, length 0.8m;

  2. Integrated micro-adjustment spring device for probe height, rubber buffer ball at end;

  3. Unique detachable design (can be directly packed into the case);

•

  PipeVision Pipeline Inspection Video Review & Reporting Software

  1. Play/preview inspection videos, add inspection info, capture defect images, perform defect identification and description, annotate/measure defect images;

  2. Standard Support: Supports multiple standards (CJJ181-2012, Beijing Drainage Enterprise Standard, Shanghai, Guangdong, Shenzhen, Shandong Local Standards, etc.);

  3. Import CTV files with AI identification results for manual review;

  4. Automatically generate detailed inspection reports with images and text, including project info, overview, defect distribution, equipment intro, workflow, defect statistics, etc., compliant with CJJ181;

  5. Export reports to editable formats (WORD, EXCEL, PDF), automatically organize and export archived data (inspection data, videos, defect images) for GIS integration;

  6. Electronic map functionality to mark inspection points, view corresponding data, defect images, and videos; export defect distribution maps as web format for reporting and sharing;
